3/4HP Furnace Blower Motor 208/230-Volt 3.85 Amps 1075RPM 5 Speeds CW/CCW Rotation 48 Frame 4.8 In. Shaft Length
Original price was: $117.90.$82.53Current price is: $82.53.
- The quality you expect, the service you deserve.
- Top Quality Products
- Shop with ease, buy with confidence.
- High quality products, hassle-free returns.
3/4HP Furnace Blower Motor. VEVOR 3/4HP Furnace Blower Motor-Perfect companion for your indoor climate needs. 208-230-Volt voltage, 3.85 Amp current, 48 frame size, 4.8 in. shaft length, 0.5 in. shaft diameter, CW/CCW dual rotation, with 10μF/450-Volt capacitor, 11 in. hold hoop. A perfect motor to air conditioning duct system and furnaces.
- Ensure the horsepower (HP) and the specifications on the nameplate for a precise match, it is important to match the required horsepower and specifications for your motor, installing a lower horsepower motor can result in overheating and improper functioning, while the replacement parts are compatible with major brands, always verify the fitment with your specific application

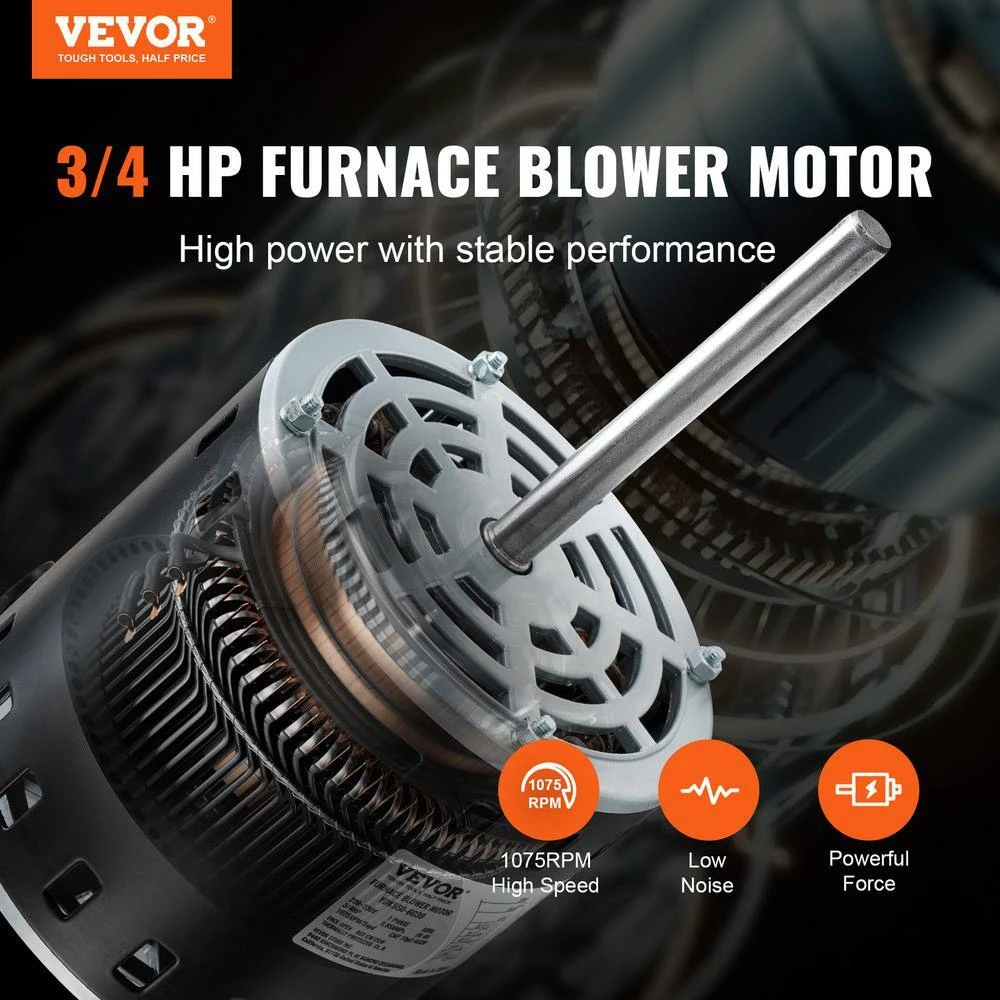

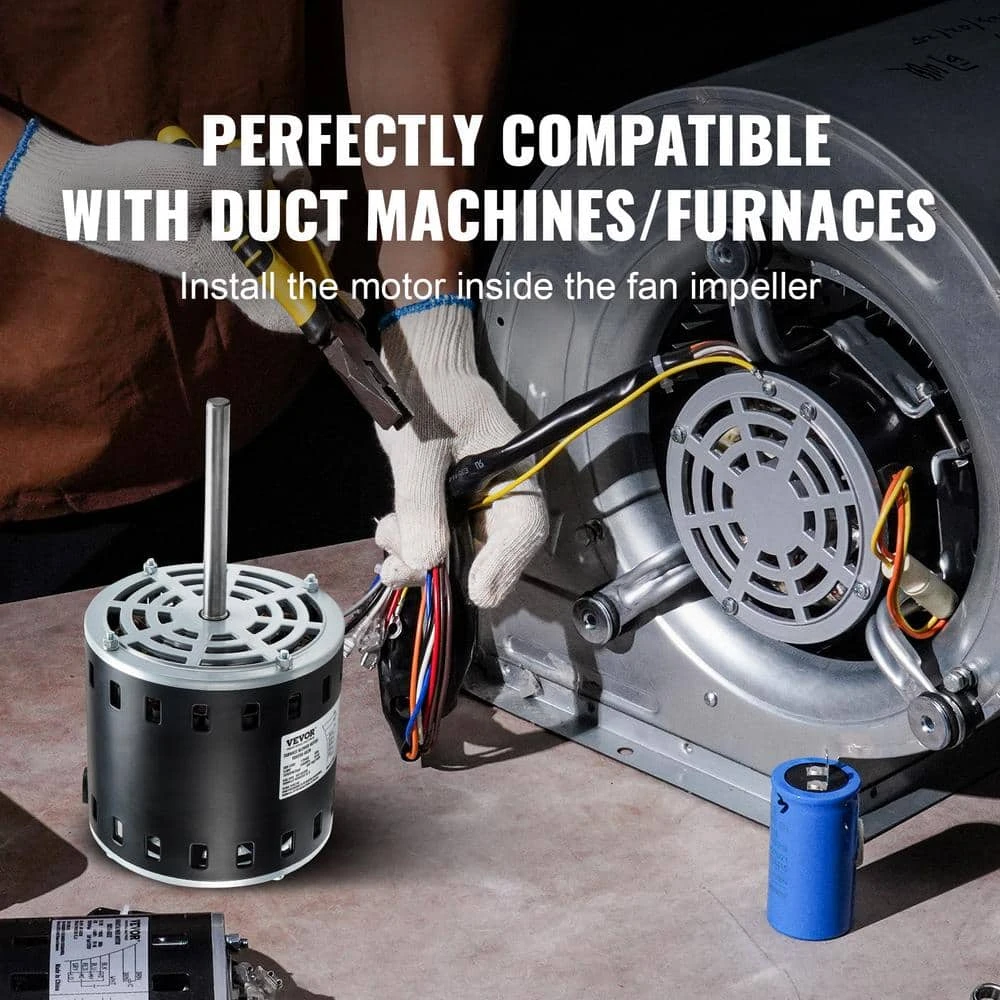

- 3/4HP furnace blower motor: this motor has a power rating of 3/4 HP and operates at 1075 RPM with 5 different speeds, it requires a full load amps of 3.85A and operates on a power supply of 208-230-Volt it is designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers and packaging systems
- Frame type: the motor belongs to the 48-frame size category and features a 0.5 in. shaft diameter with a shaft length of 4.8 in. it operates with strong and powerful performance, running at high speed while maintaining low noise levels

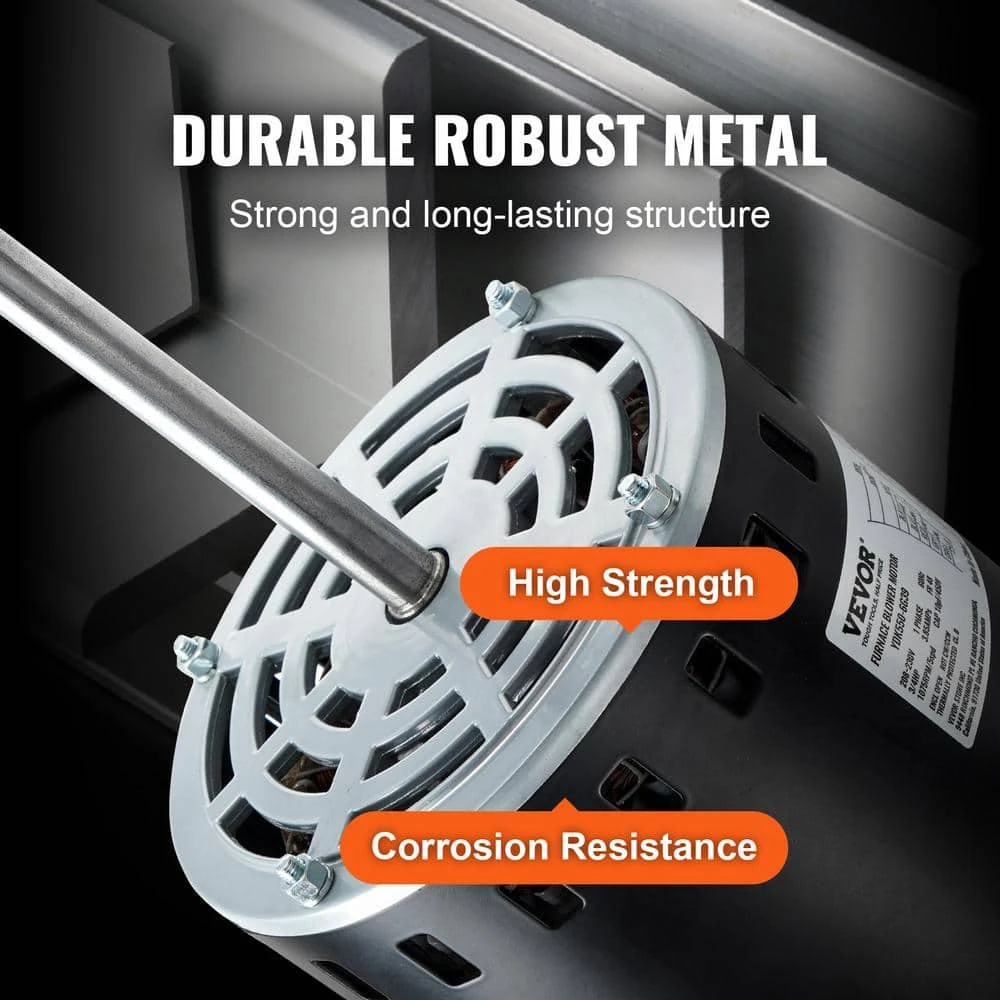

- Safety and durability: the motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance, this robust construction effectively protects the engine, ensuring a longer service life

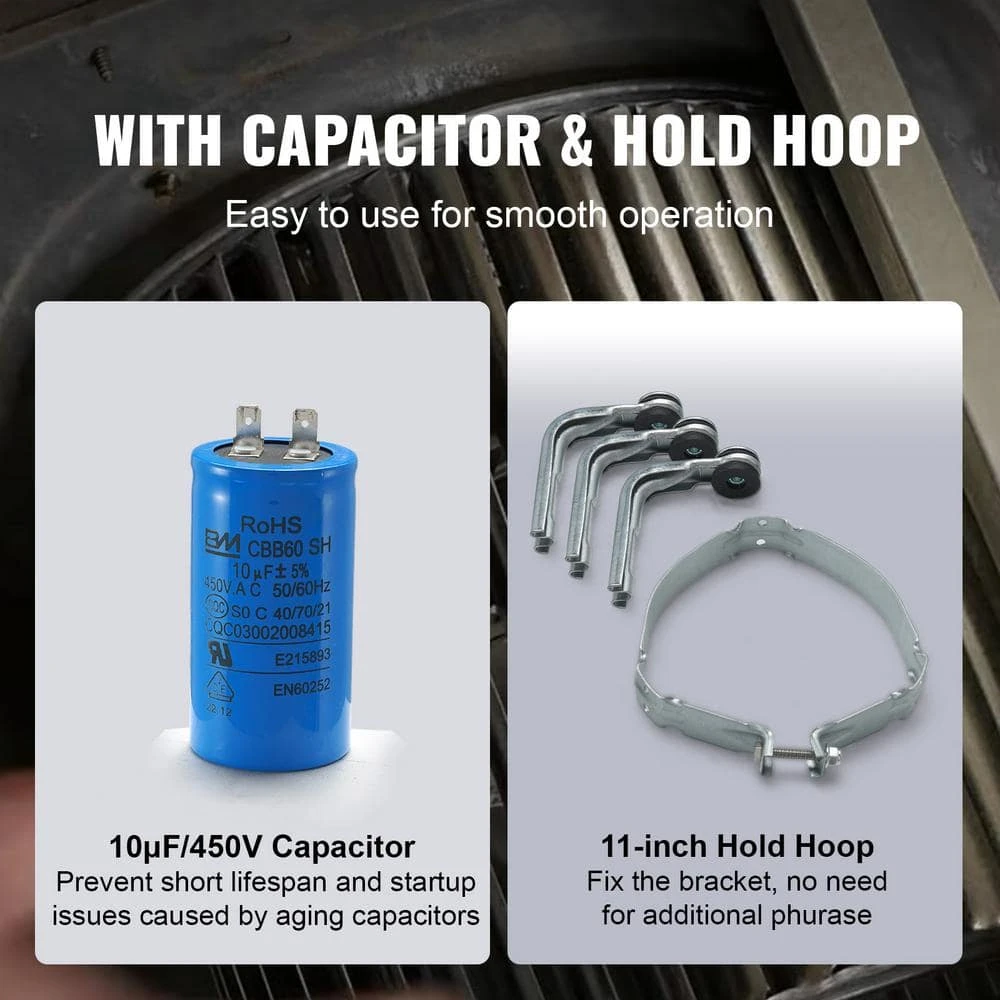

- Convenient accessories included: the motor comes with convenient accessories, including the CBB60 10μF/450-Volt capacitor, this capacitor helps prevent issues such as a shortened lifespan, overheating and motor startup failure caused by an old capacitor, additionally, an 11 in. hold hoop is provided as an installation bracket, reducing the need for additional mounting hardware purchases

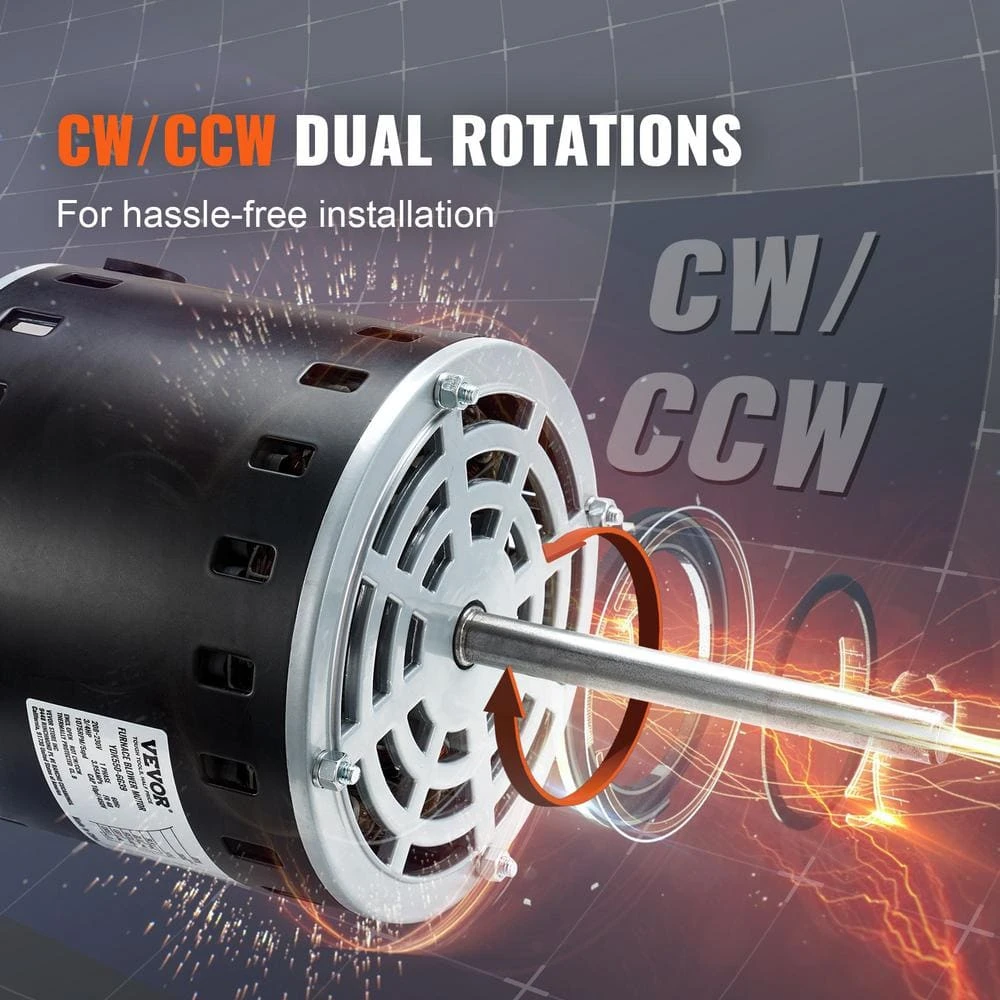

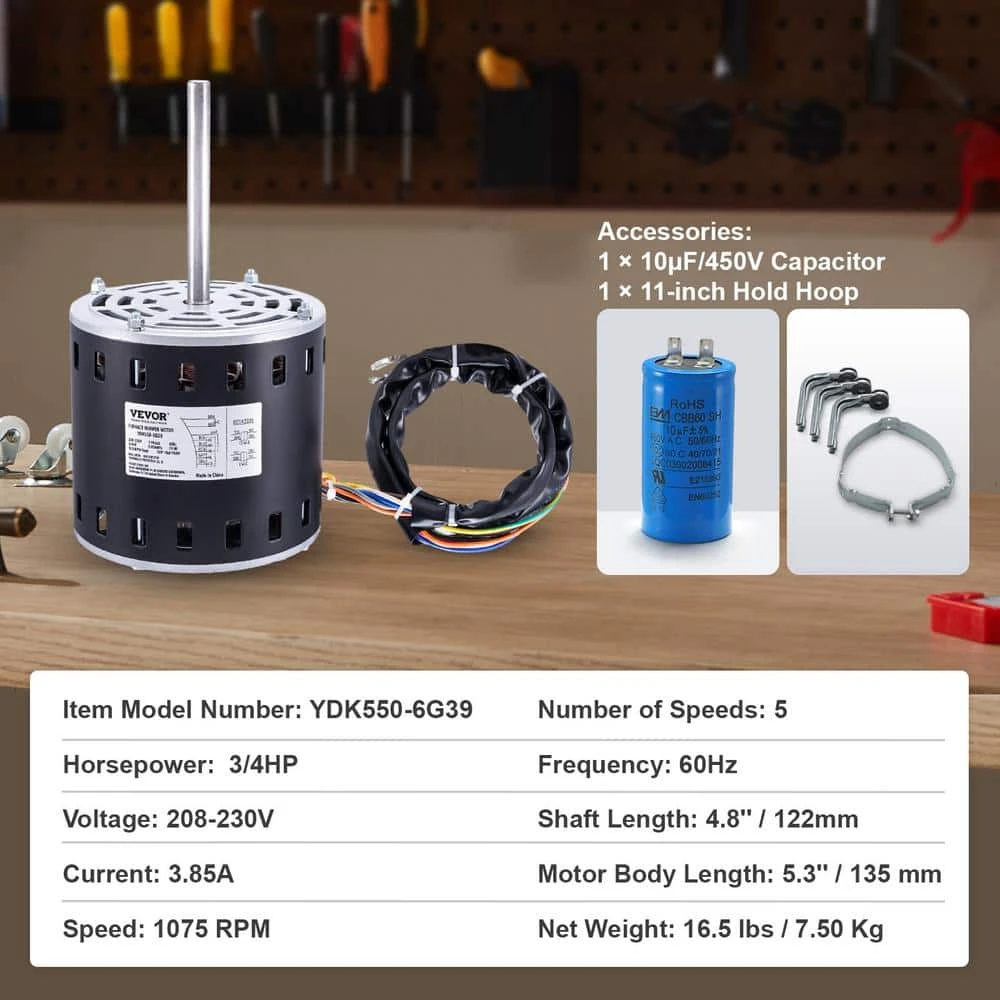

- Specifications: voltage: 208-230-Volt, horsepower: 3/4HP, rotation speed: 1075RPM, number of speeds: 5, frequency: 60 Hz, frame size: 48, rated current: 3.85A, shaft L.: 4.8 in., shaft diameter: 0.5 in., rotation: CW/CCW

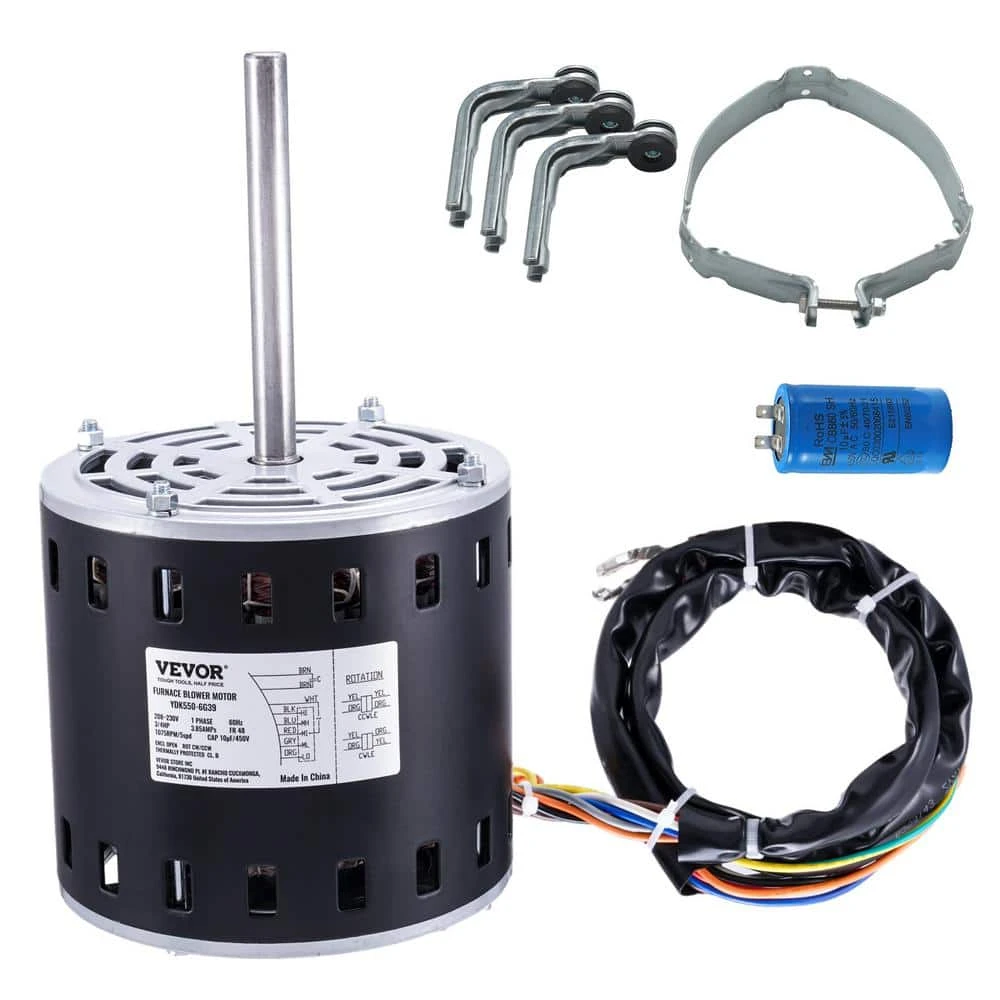

- Package content:1 x 3/4HP furnace blower motor,1 x 10μF/450-Volt capacitor,1 x 11 in. hold hoop,1 x instruction manual
| Amperage (A) | 3.85 A |
|---|---|
| Brand/Model Compatibility | Installing a lower horsepower motor can result in overheating and improper functioning. While the replacement parts are compatible with major brands, always verify the fitment with your specific application. |
| Horsepower (hp) | 0.75 hp |
| Max. Motor Speed (RPM) | 1075 RPM |
| Number of Phases | 1 |
| Number of Speeds | 5 |
| Pack Size | 1 |
| Product Weight (lb.) | 16.5 lb |
| Returnable | 90-Day |
| Voltage (volts) | 230/208 |
| Manufacturer Warranty | 1-Year |
| Product Depth (in.) | 10.1 in |
| Product Height (in.) | 10.1 in |
| Product Width (in.) | 5.3 in |
| Shaft Length (in.) | 4.8 in |
| Shaft diameter (in.) | 0.5 |
